General Structure Information
| PDB ID | 4b91 |
| HGNC Gene Label(s) | DPYSL5 |
| Structure Name | crystal structure of truncated human crmp-5 |
| Resolution | 1.7Å |
| Reference | AUTH R.PONNUSAMY,B.LOHKAMPTITL INSIGHTS INTO THE OLIGOMERIZATION OF CRMPS: CRYSTALTITL 2 STRUCTURE OF HUMAN COLLAPSIN RESPONSE MEDIATOR PROTEIN 5.REF J.NEUROCHEM. V. 125 855 2013REFN ISSN 0022-3042PMID 23373749DOI 10.1111/JNC.12188 |
Variant Set Distributions
ExAC Variants
| Number Of Residues | 474 |
| Number Of SNVs | 91 |
| Number Of Permutations | 20240 |
| Optimal Distance Threshold | 6.0 |
| K Statistic | 0.015 |
| p-value | 0.885 |
COSMIC
| Number Of Residues | 474 |
| Number Of SNVs | 10 |
| Number Of Permutations | 2791 |
| Optimal Distance Threshold | 23.0 |
| K Statistic | 0.178 |
| p-value | 0.09 |

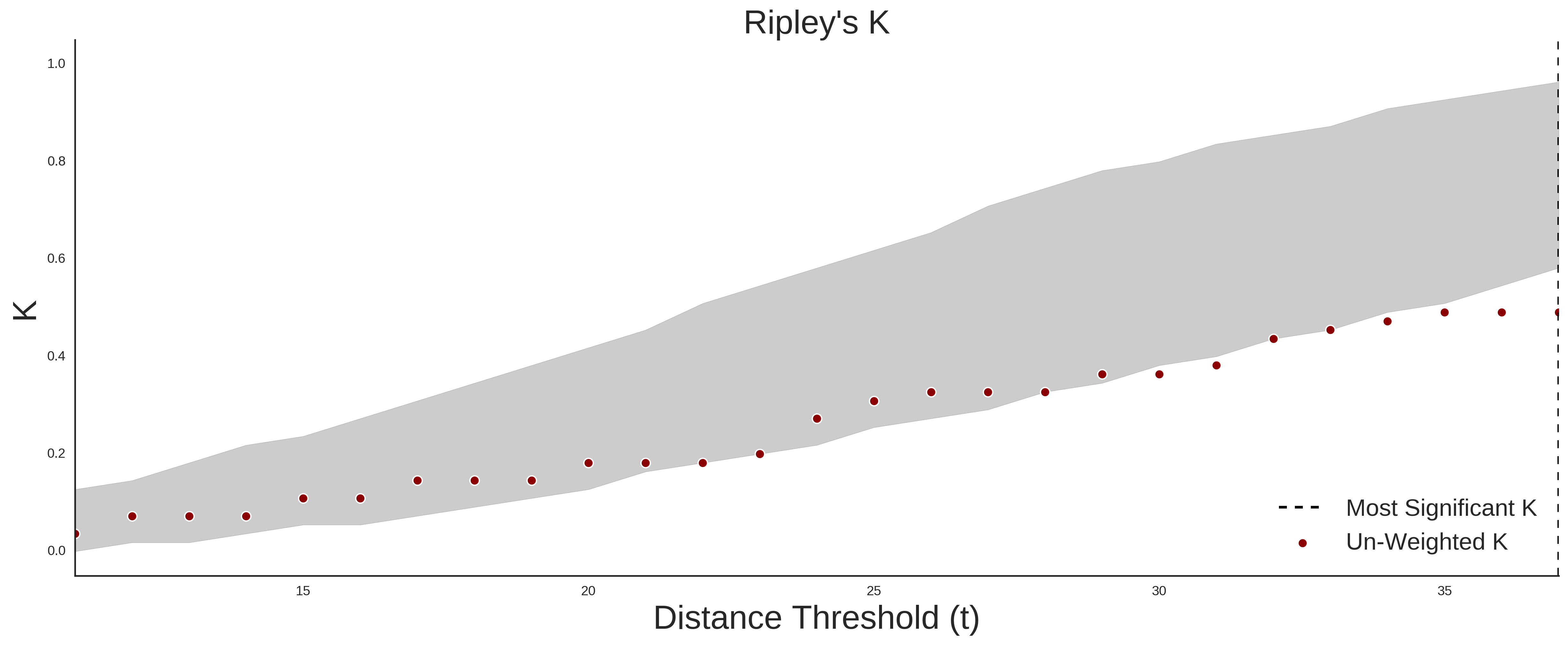

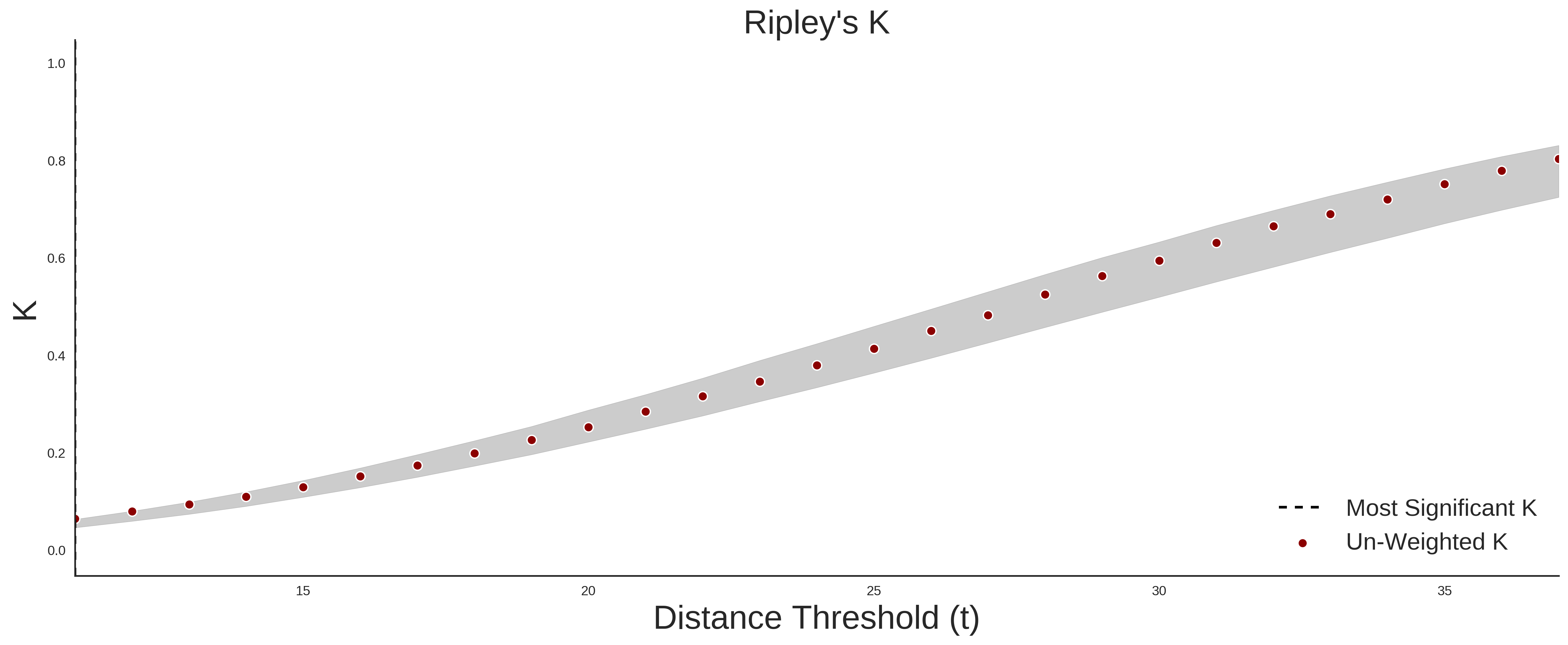

Ripley’s K Analysis Plots
ExACCOSMIC
Variant Set Comparisons
Cosmic vs. ExAC
| Number Of ExAC SNVs | 91 |
| Number Of COSMIC SNVs | 8 |
| Optimal Distance Threshold | 30.0 |
| K Statistic | -0.269 |
| p-value | 0.173 |

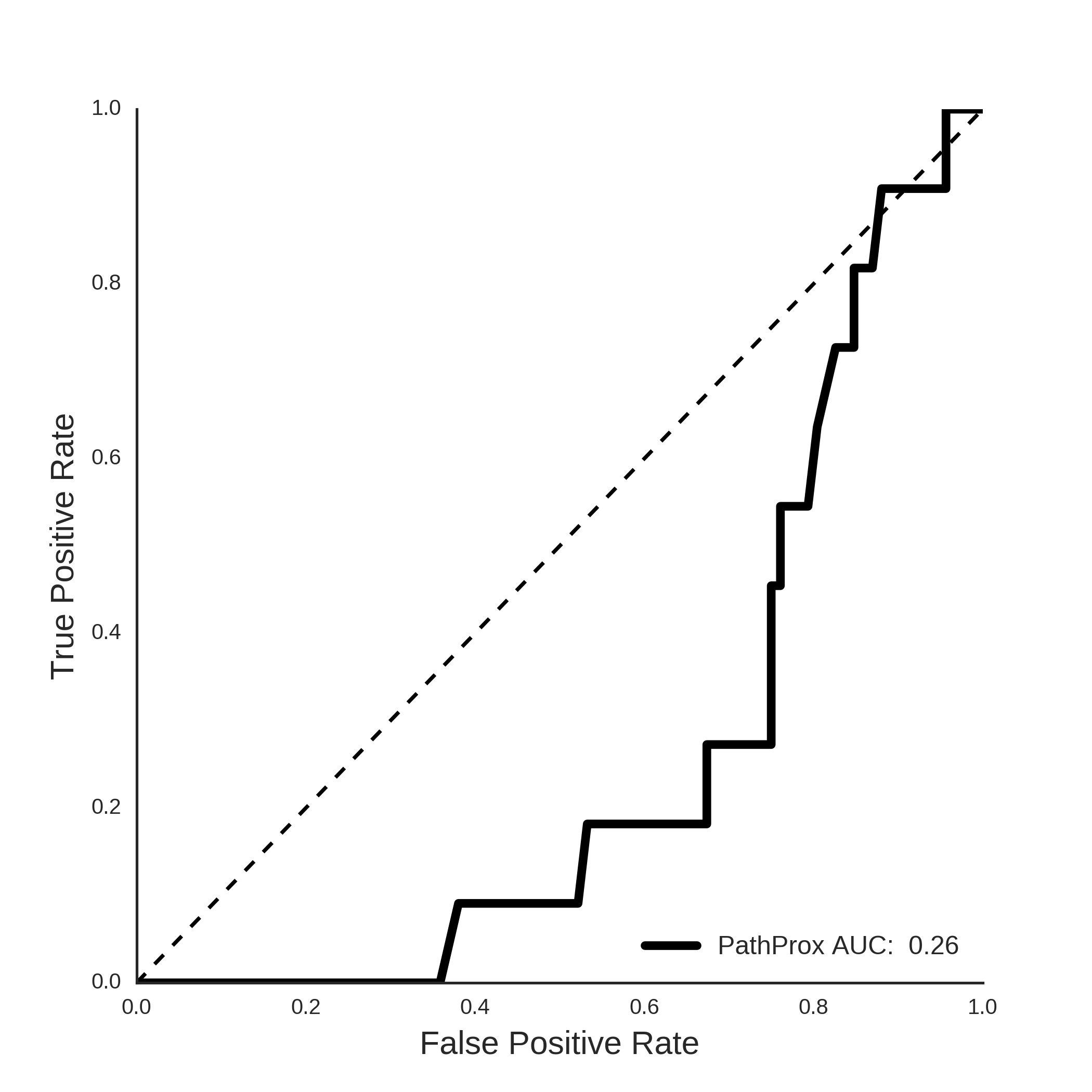

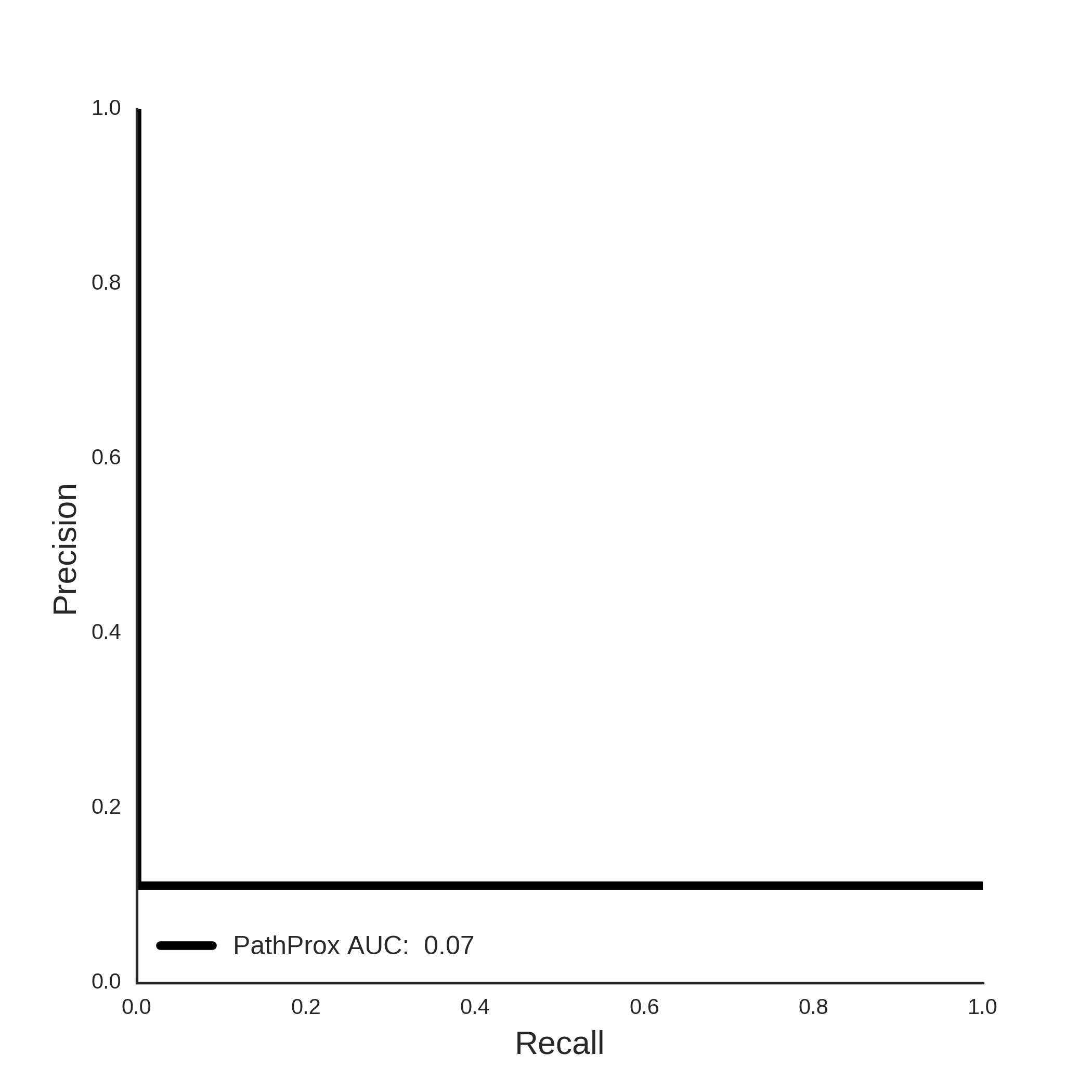

Pathogenic Proximity Analysis
COSMIC PathProx Analysis
