3HHD.C | FASN

General Structure Information

PDB ID 3hhd
HGNC Gene Label(s) FASN
Structure Name structure of the human fatty acid synthase ks-mat didomain as a framework for inhibitor design.
Resolution 2.15Å
Reference AUTH G.PAPPENBERGER,J.BENZ,B.GSELL,M.HENNIG,A.RUF,AUTH 2 M.STIHLE,R.THOMA,M.G.RUDOLPHTITL STRUCTURE OF THE HUMAN FATTY ACID SYNTHASE KS-MATTITL 2 DIDOMAIN AS A FRAMEWORK FOR INHIBITOR DESIGN.REF J.MOL.BIOL. V. 397 508 2010REFN ISSN 0022-2836PMID 20132826DOI 10.1016/J.JMB.2010.01.066

Variant Set Distributions

ExAC Variants

Number Of Residues 852
Number Of SNVs 208
Number Of Permutations 61405
Optimal Distance Threshold 27.0
K Statistic 0.233
p-value 0.0
COSMIC

Number Of Residues 852
Number Of SNVs 14
Number Of Permutations 14243
Optimal Distance Threshold 28.0
K Statistic 0.22
p-value 1.0

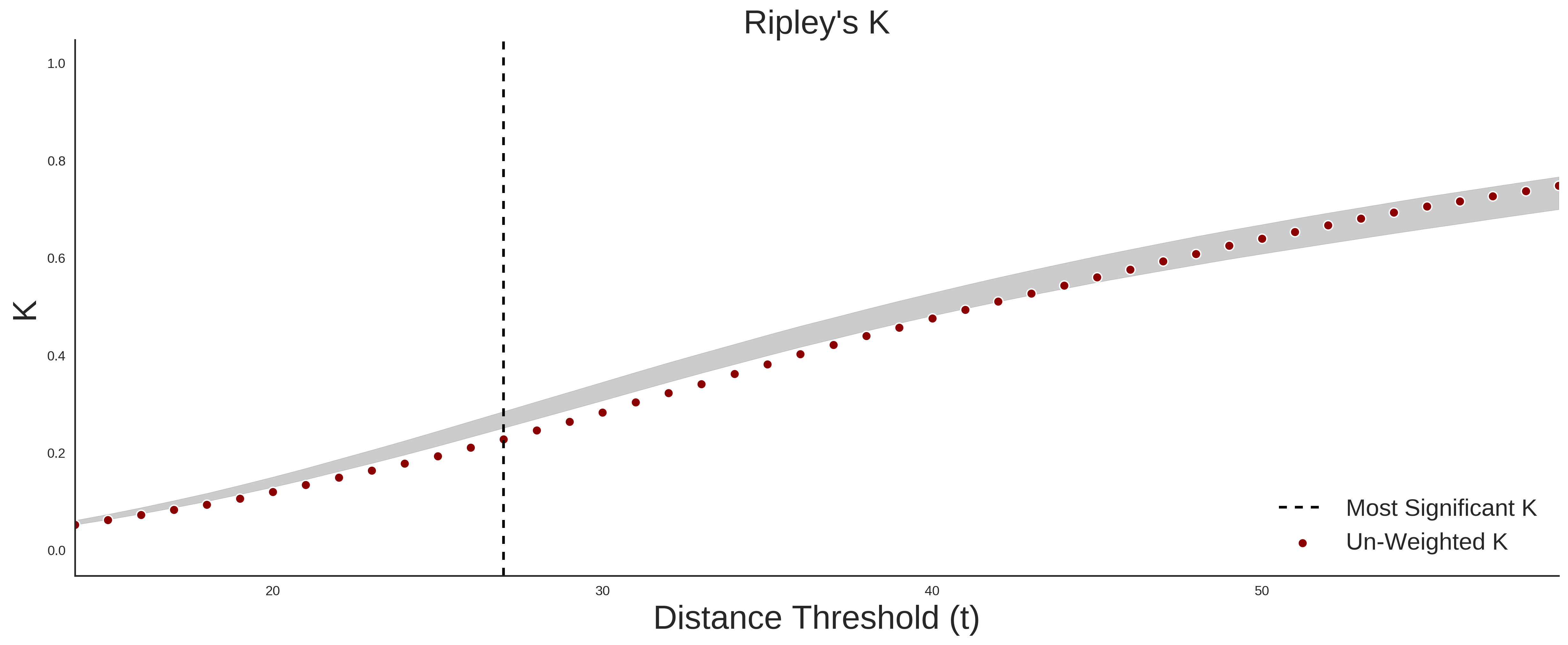

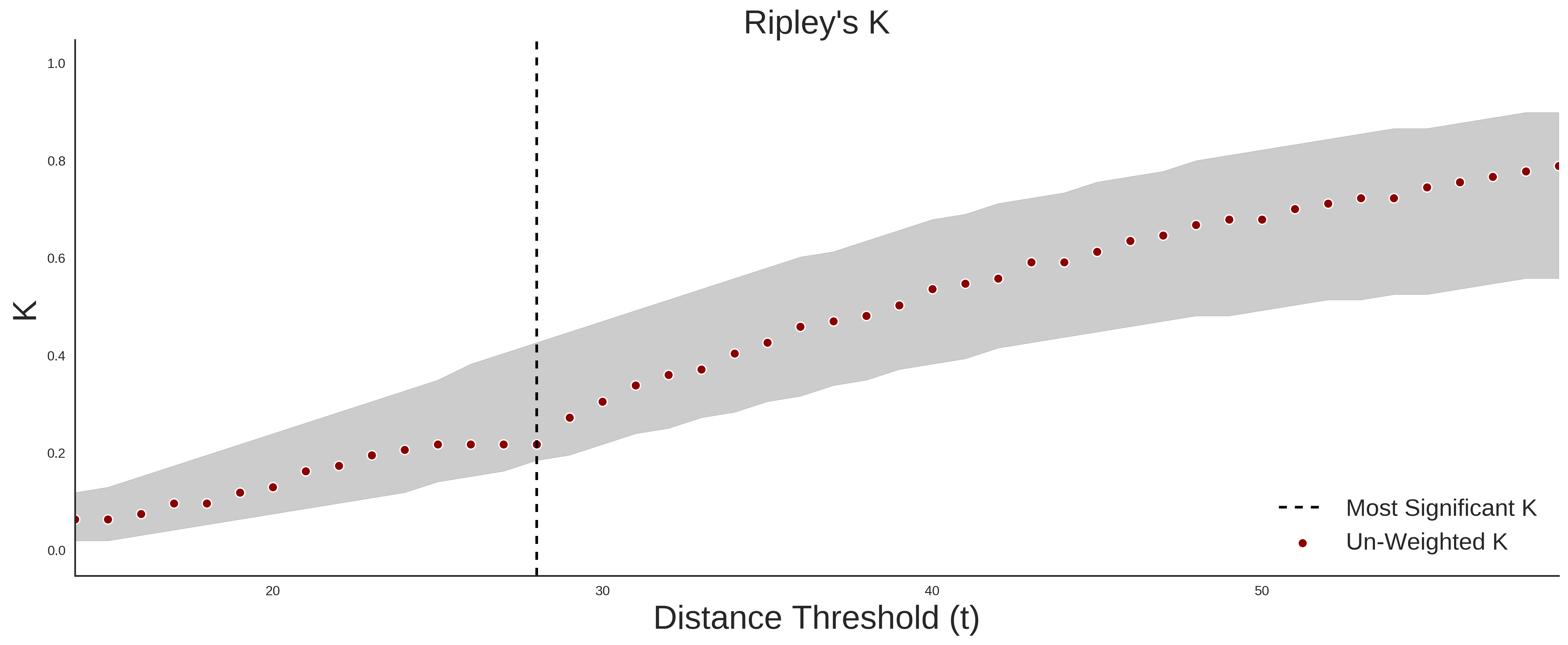

Ripley’s K Analysis Plots

ExACCOSMIC

Variant Set Comparisons

Cosmic vs. ExAC

Number Of ExAC SNVs 208
Number Of COSMIC SNVs 13
Optimal Distance Threshold 32.0
K Statistic 0.081
p-value 0.39

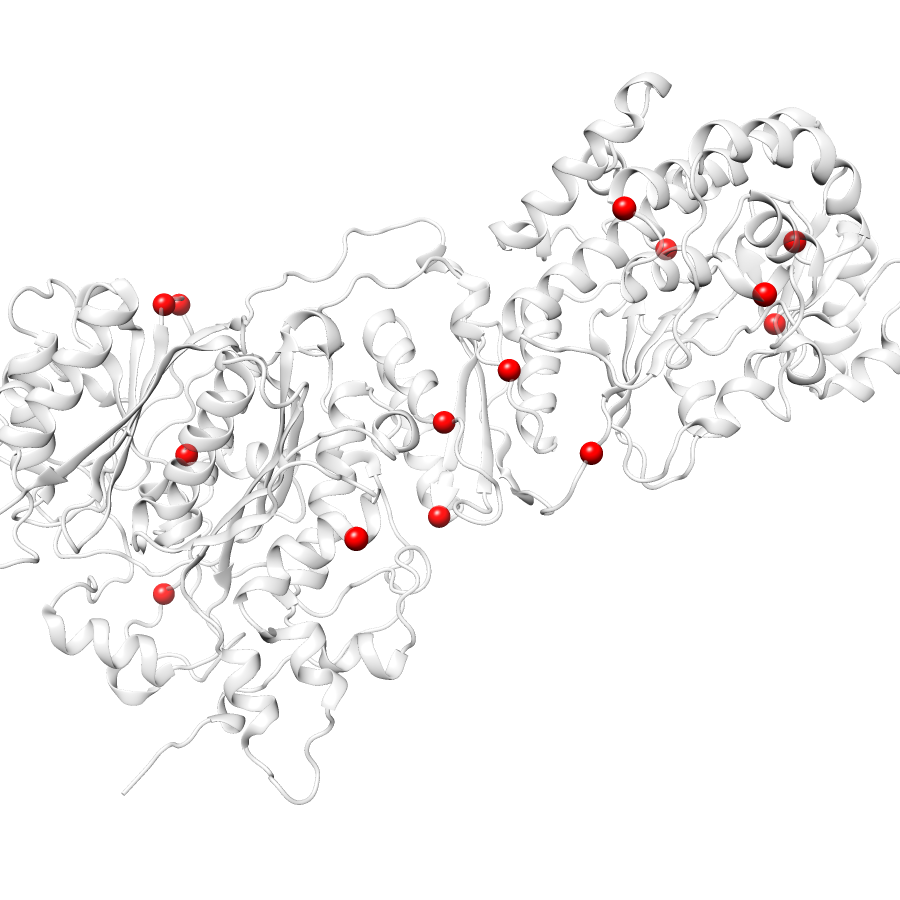

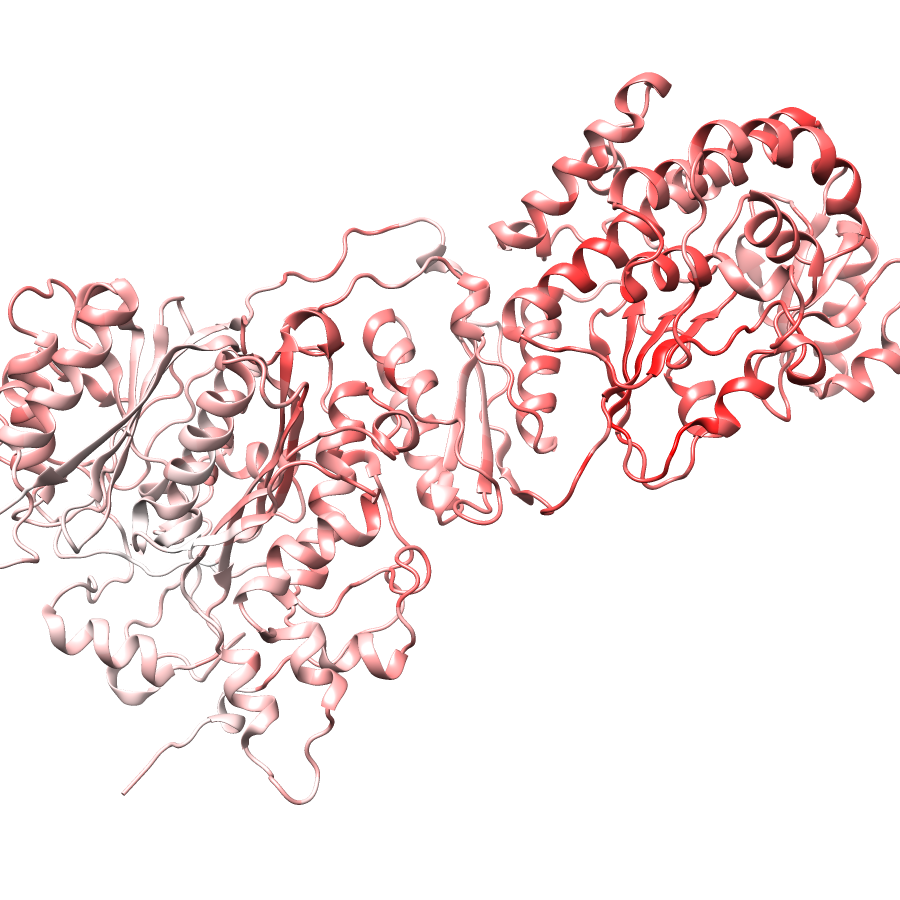

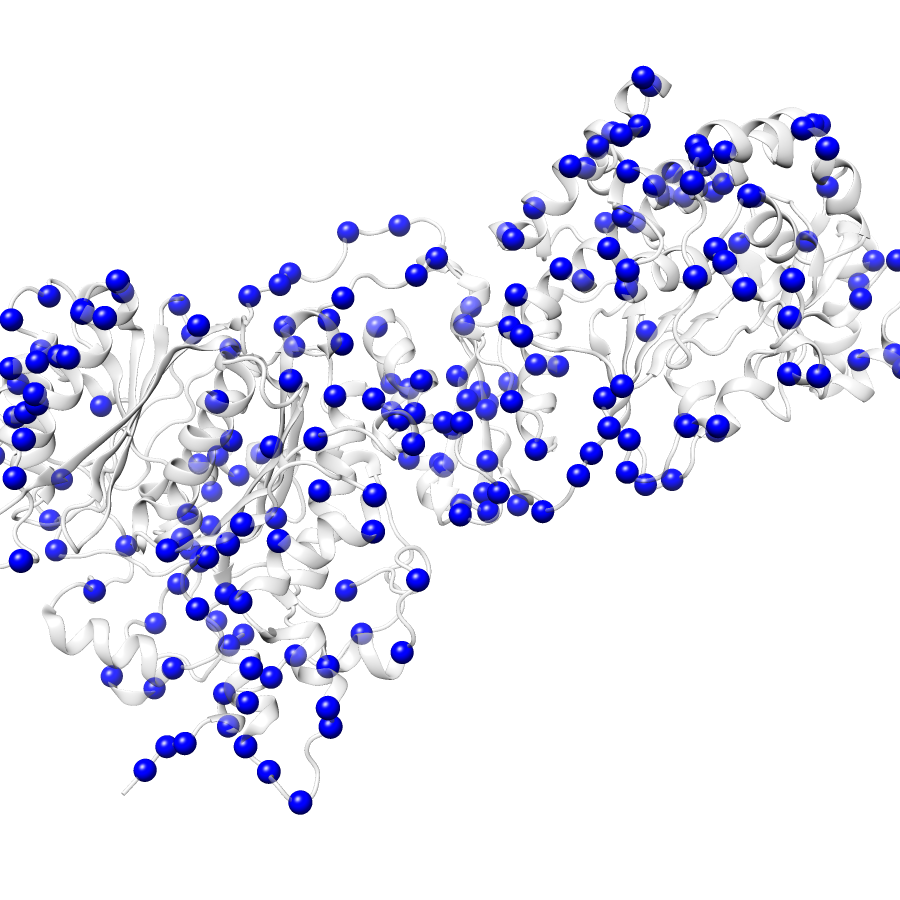

Mapped Variants

[+] ExAC Missense Variants

[+] COSMIC Missense Variants
