General Structure Information
| PDB ID | 2f9m |
| HGNC Gene Label(s) | RAB11B |
| Structure Name | 3d structure of active human rab11b gtpase |
| Resolution | 1.95Å |
| Reference | AUTH S.M.SCAPIN,F.R.CARNEIRO,A.C.ALVES,F.J.MEDRANO,AUTH 2 B.G.GUIMARAES,N.I.ZANCHINTITL THE CRYSTAL STRUCTURE OF THE SMALL GTPASE RAB11BTITL 2 REVEALS CRITICAL DIFFERENCES RELATIVE TO THETITL 3 RAB11A ISOFORM.REF J.STRUCT.BIOL. V. 154 260 2006REFN ISSN 1047-8477PMID 16545962DOI 10.1016/J.JSB.2006.01.007 |
Variant Set Distributions
ExAC Variants
| Number Of Residues | 181 |
| Number Of SNVs | 24 |
| Number Of Permutations | 4152 |
| Optimal Distance Threshold | 7.0 |
| K Statistic | 0.058 |
| p-value | 0.515 |
COSMIC
| Number Of Residues | 181 |
| Number Of SNVs | 3 |
| Number Of Permutations | 108 |
| Optimal Distance Threshold | 16.0 |
| K Statistic | 0.667 |
| p-value | 0.451 |

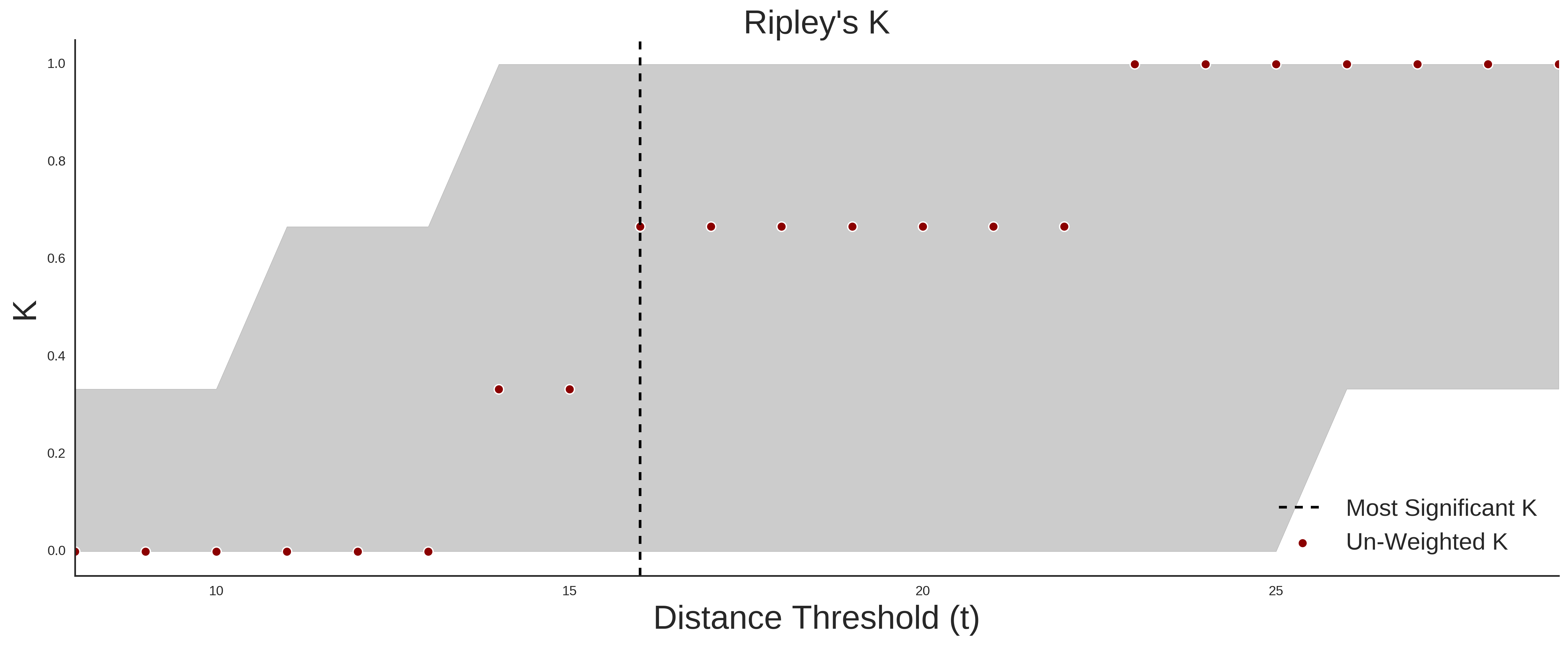

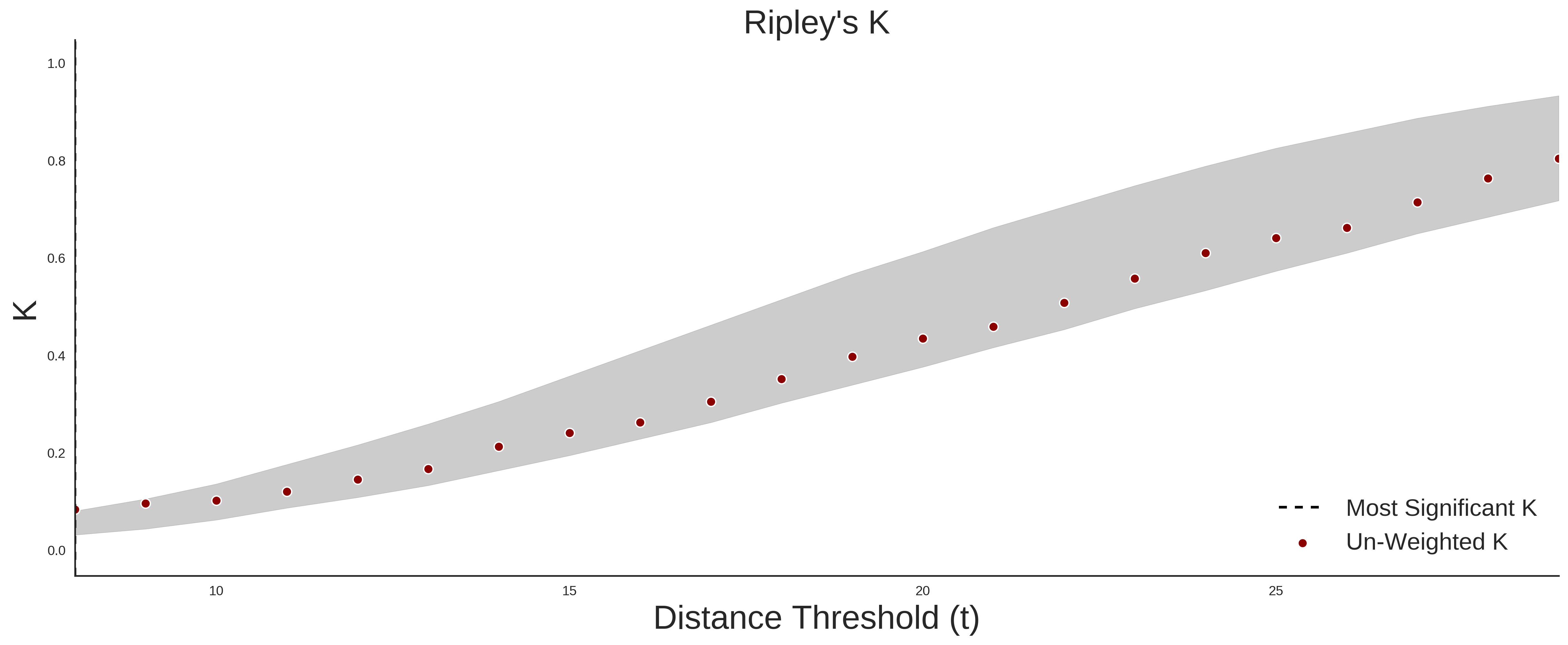

Ripley’s K Analysis Plots
ExACCOSMIC
Variant Set Comparisons
Cosmic vs. ExAC
| Number Of ExAC SNVs | 24 |
| Number Of COSMIC SNVs | 3 |
| Optimal Distance Threshold | 16.0 |
| K Statistic | 0.413 |
| p-value | 0.447 |

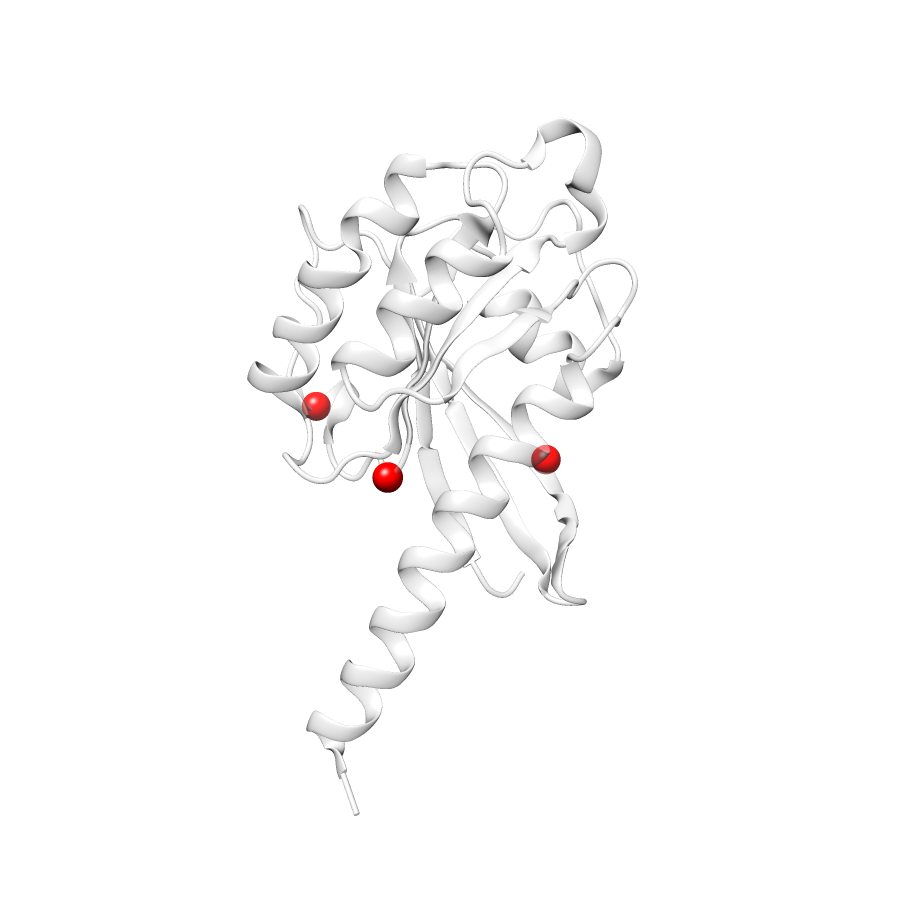

Pathogenic Proximity Analysis

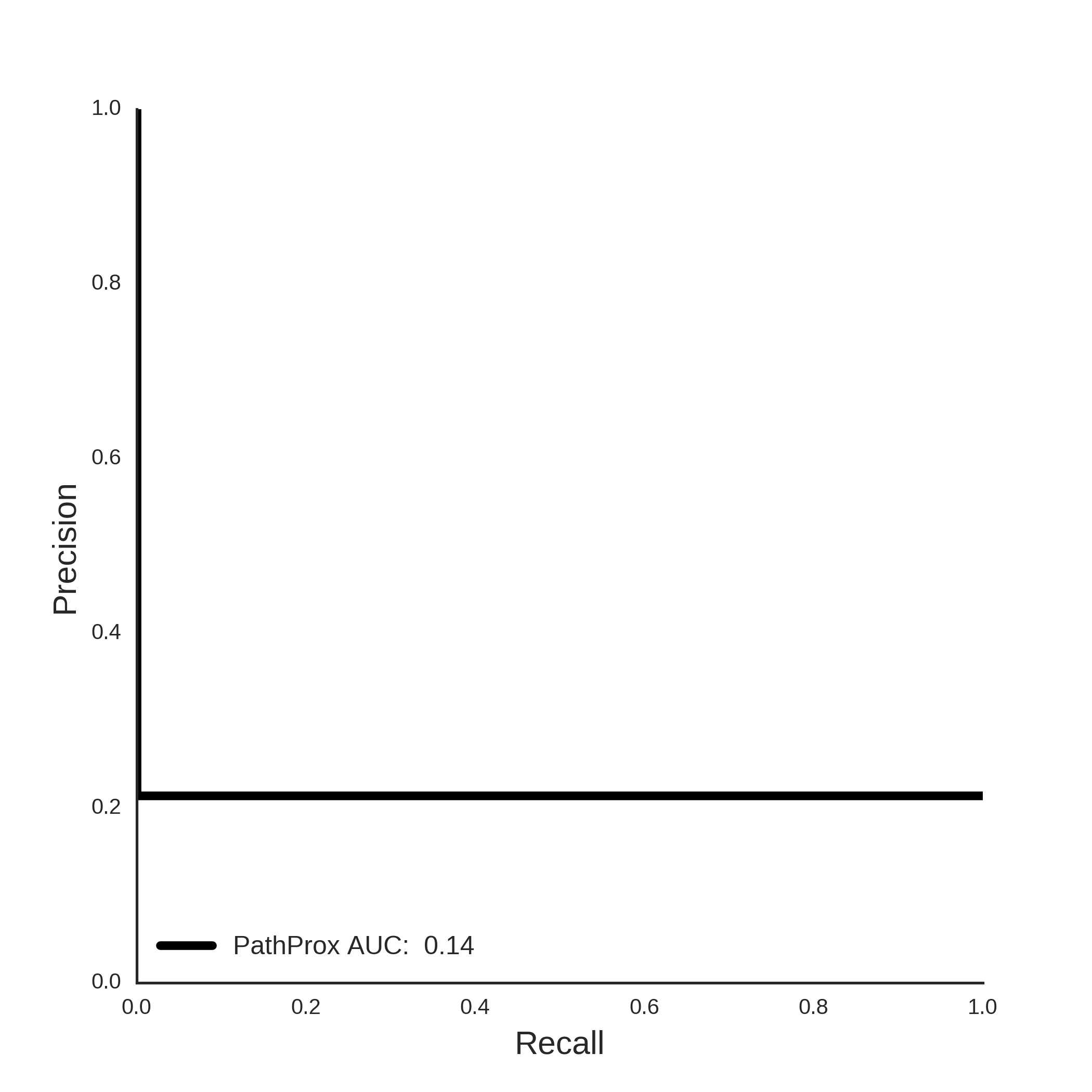

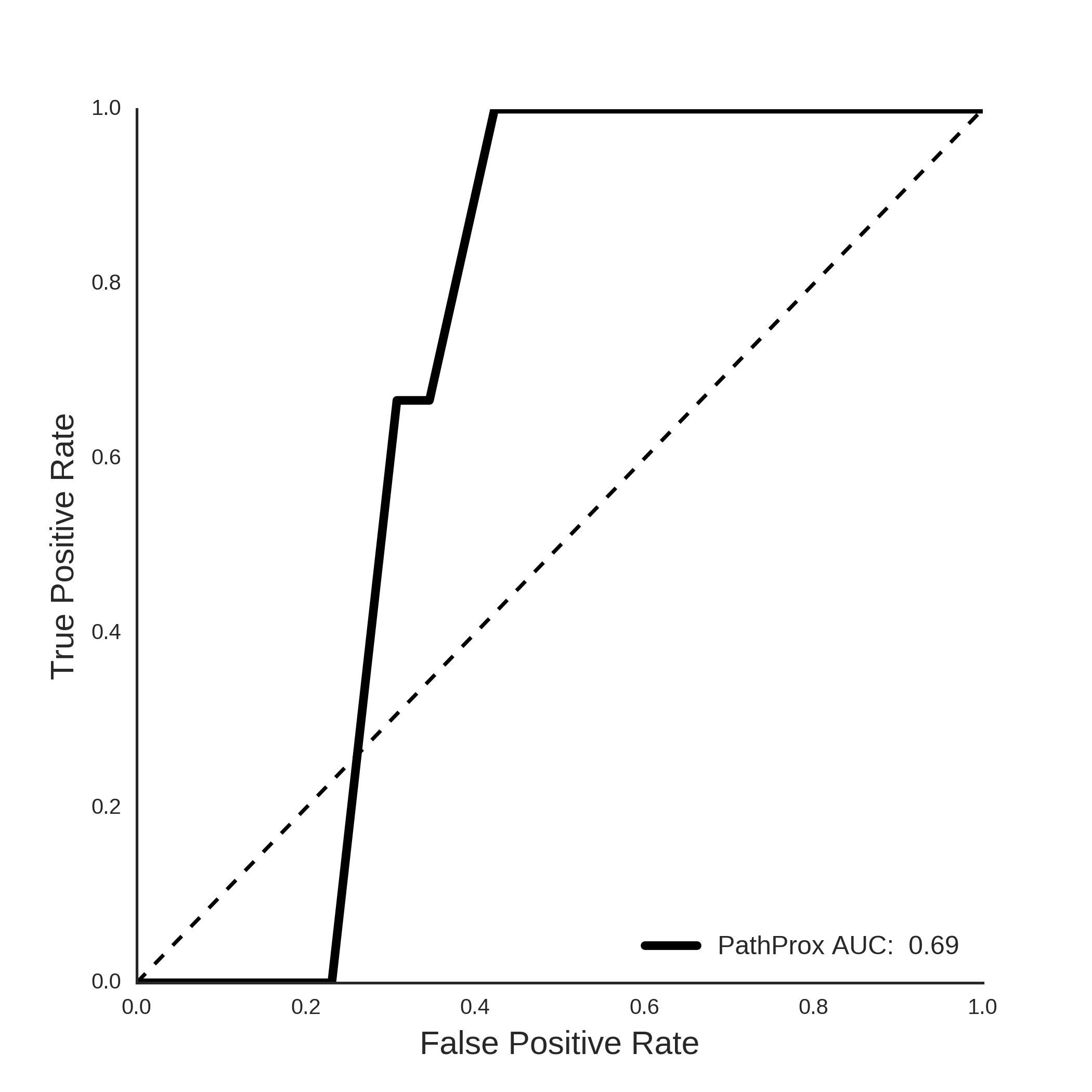

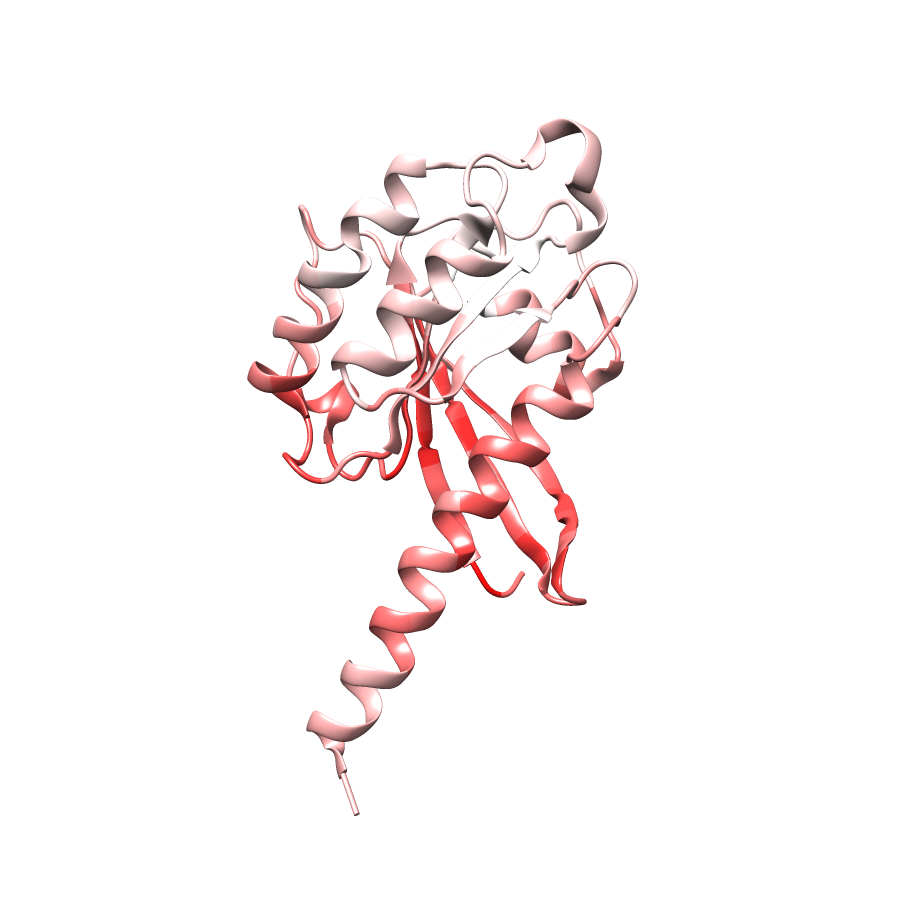

COSMIC PathProx Analysis
