General Structure Information
| PDB ID | 1m6d |
| HGNC Gene Label(s) | CTSF |
| Structure Name | crystal structure of human cathepsin f |
| Resolution | 1.7Å |
| Reference | AUTH J.R.SOMOZA,J.T.PALMER,J.D.HOTITL THE CRYSTAL STRUCTURE OF HUMAN CATHEPSIN F AND ITSTITL 2 IMPLICATIONS FOR THE DEVELOPMENT OF NOVEL IMMUNOMODULATORSREF J.MOL.BIOL. V. 322 559 2002REFN ISSN 0022-2836PMID 12225749DOI 10.1016/S0022-2836(02)00780-5 |
Variant Set Distributions
ExAC Variants
| Number Of Residues | 201 |
| Number Of SNVs | 45 |
| Number Of Permutations | 17813 |
| Optimal Distance Threshold | 7.0 |
| K Statistic | 0.027 |
| p-value | 0.859 |
ClinVar
| Number Of Residues | 201 |
| Number Of SNVs | 3 |
| Number Of Permutations | 133 |
| Optimal Distance Threshold | 16.0 |
| K Statistic | 0.0 |
| p-value | 0.656 |

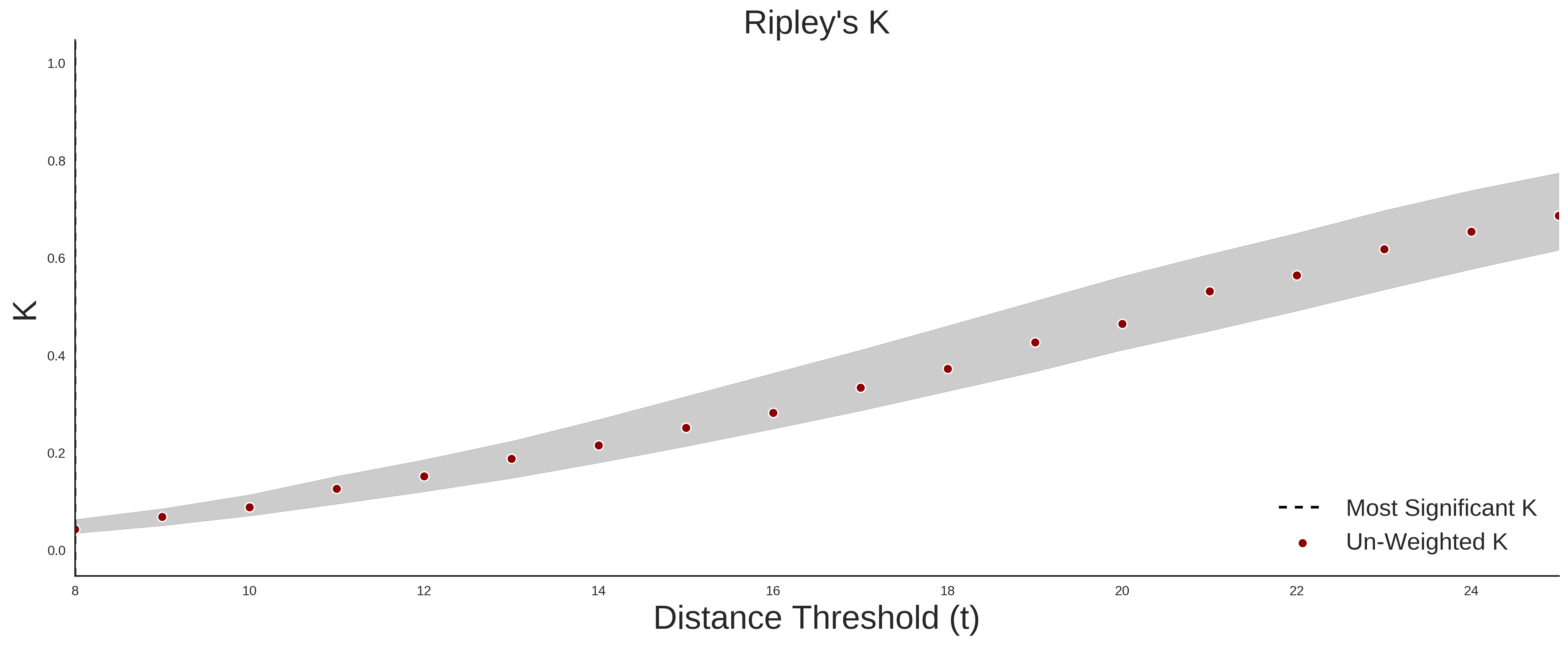

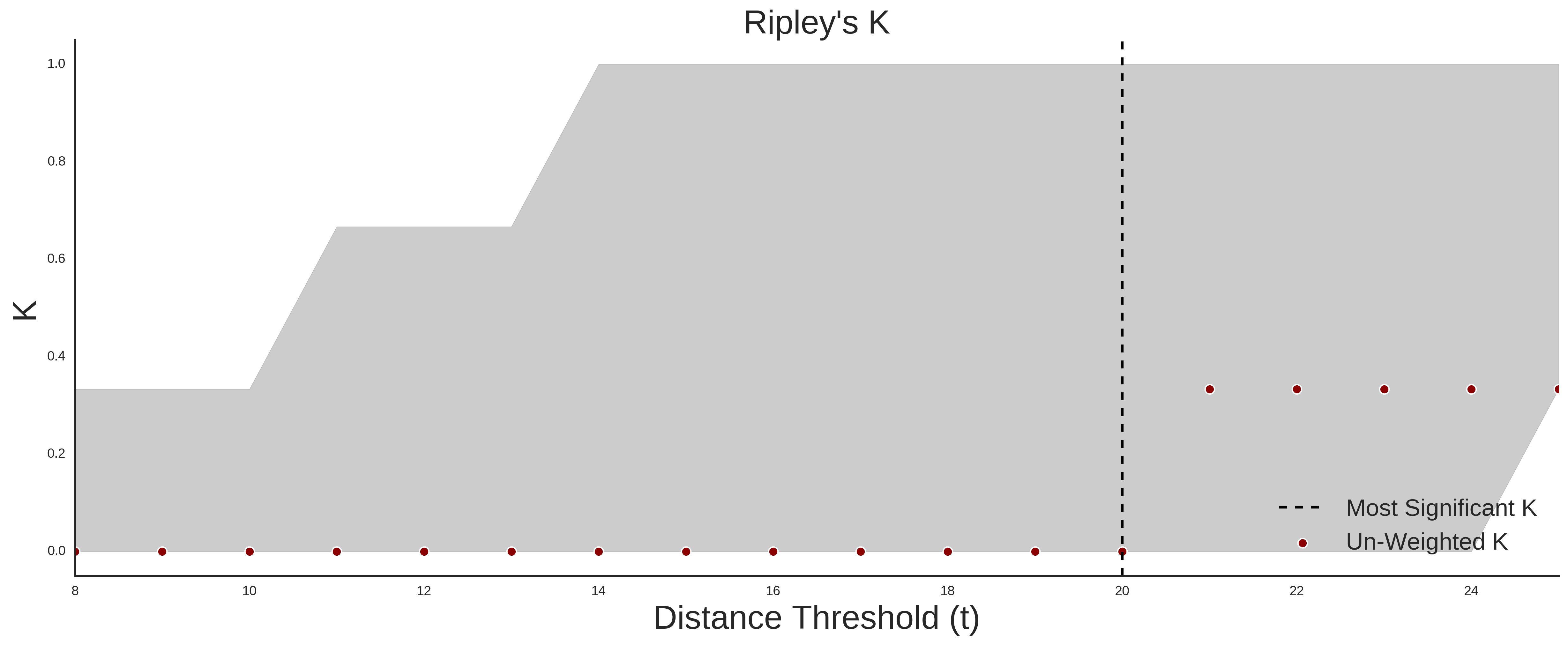

Ripley’s K Analysis Plots
ExACClinVar
Variant Set Comparisons
ClinVar vs. ExAC
| Number Of ExAC SNVs | 45 |
| Number Of ClinVar SNVs | 3 |
| Optimal Distance Threshold | 14.0 |
| K Statistic | -0.214 |
| p-value | 0.902 |

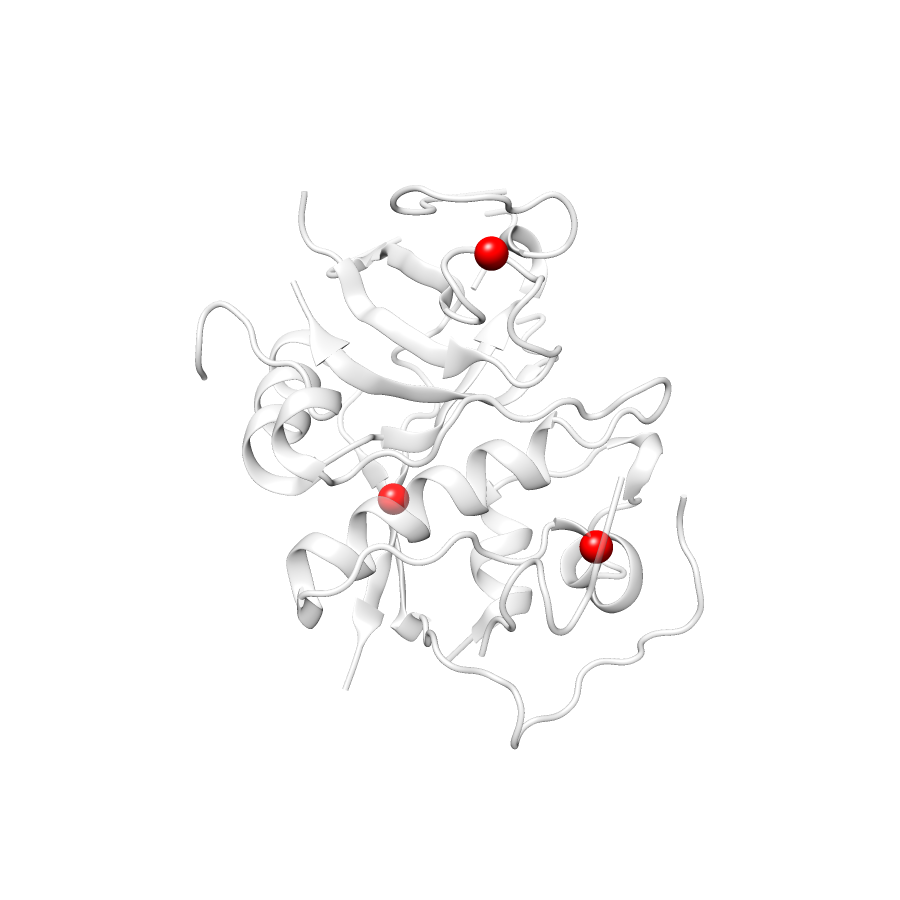

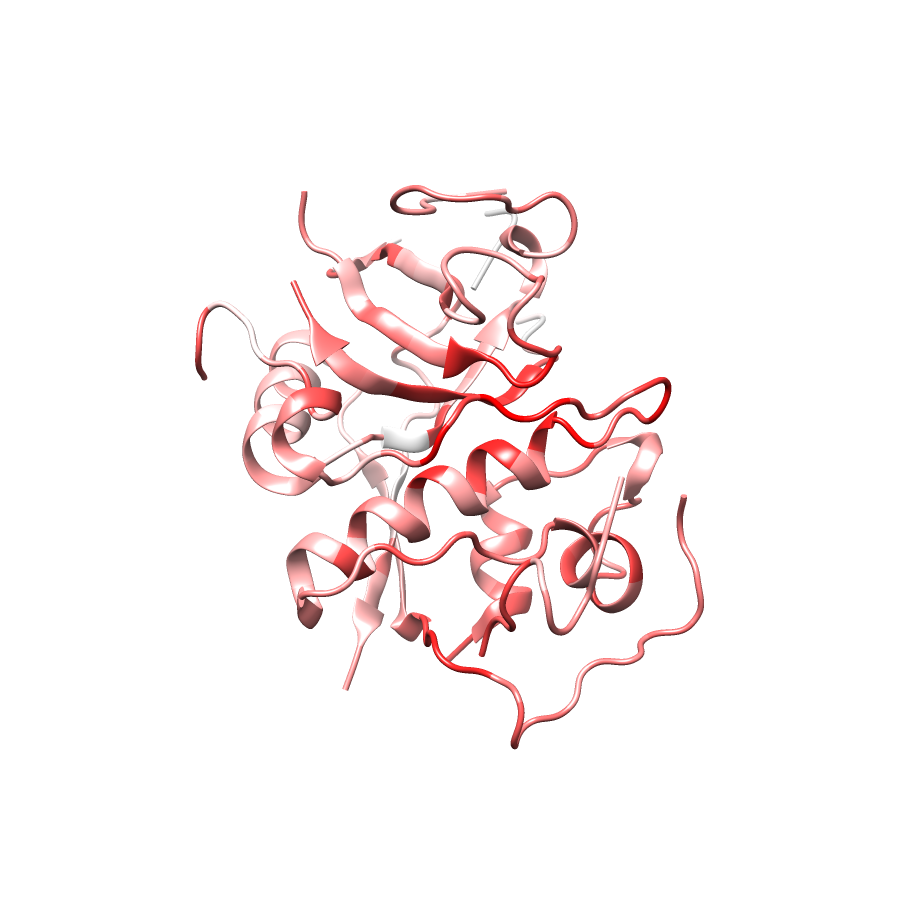

Pathogenic Proximity Analysis

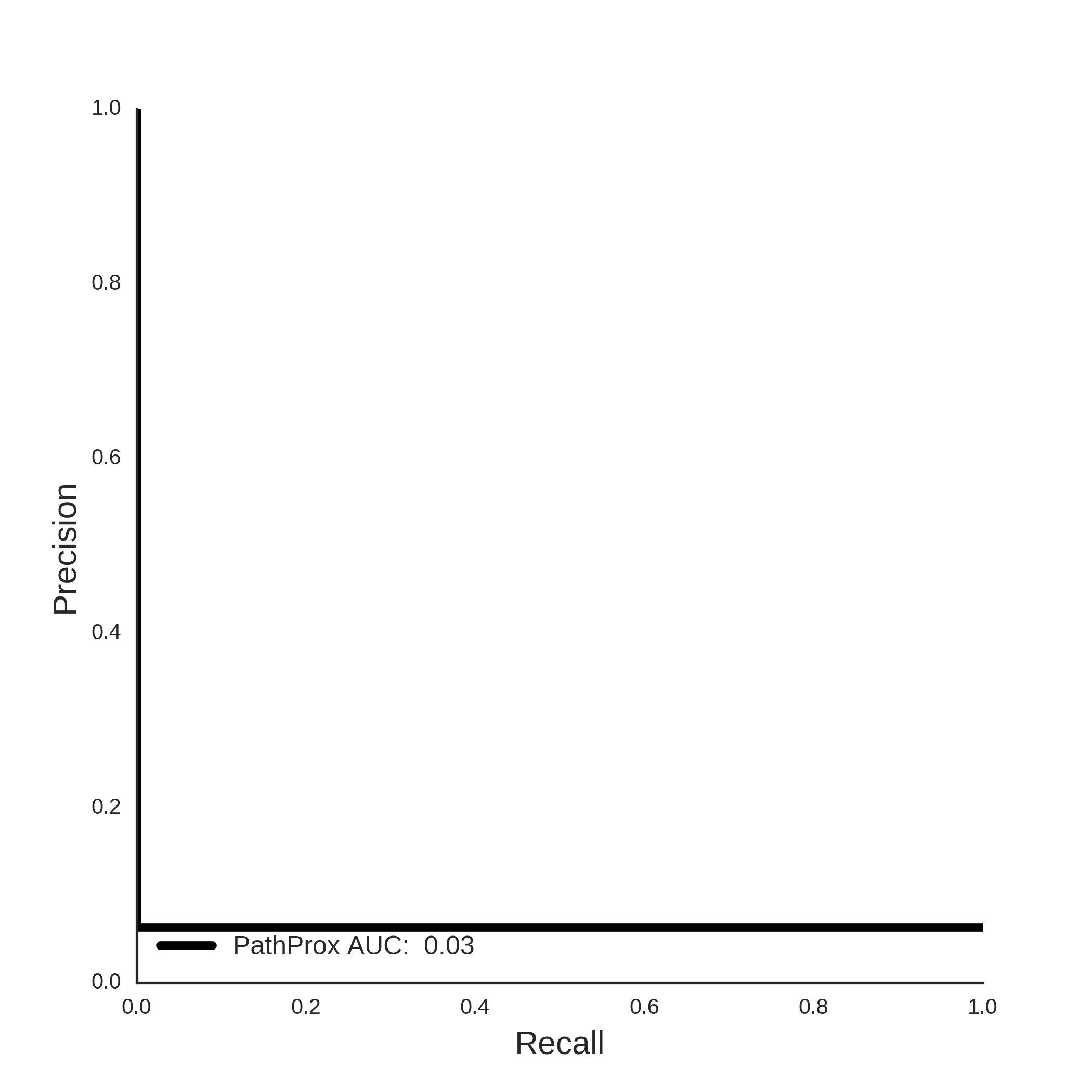

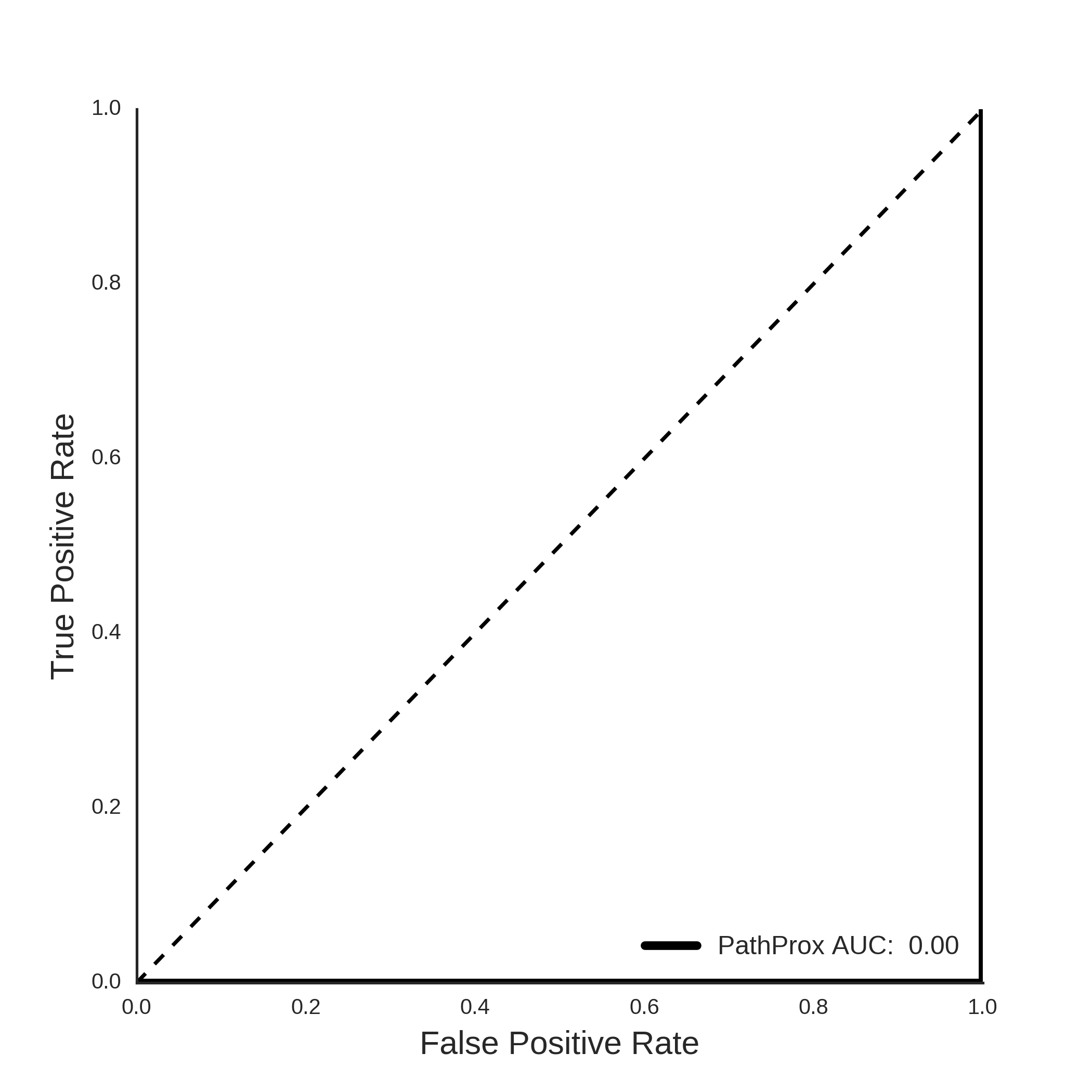

ClinVar PathProx Analysis
